- Customized engine, well-matched power-train for strong power output, low fuel consumption;
- Advanced and highly efficient hydraulics deliver fluid on demand without overflow loss to save energy, while offer smooth shift;
- Heavy-duty wet axle, robust frame structure and dependable components provide high reliability;
- Pressurized FOPS/ROPS cab, ergonomically design, 309°panoramic visibility and three-stage vibration reduction give the operator a safe and comfortable work environment;
- Ground-level servicing, cost-saving routine maintenance.

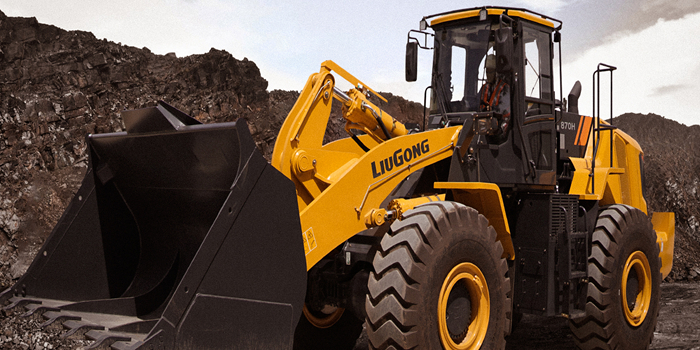

870H
Operating weight:
22,594 - 23,294 kg
Rated power:
190 kW
Rated load capacity:
7,000 kg
Product Features
870H
870H
Specifications
| Operating weight | 23,294 kg |
| Standard bucket | 4.5 m³ |
| Rated power | 190 kW (255 hp / 258 ps) @ 2,200 rpm |
| Maximum gross power | 190 kW (255 hp / 258 ps) @ 2,200 rpm |
| Rated load capacity | 7,000 kg |
| Hydraulic cycle time | 9.5 s |
| Raise time | 5.7 s |
| Maximum travel speed | 38 km/h |
| Tipping load-full turn | 17,166 kg |
| Bucket breakout force | 200 kN |
| Dump clearance, full height discharge | 3,105 mm |
| Dump reach, full height discharge | 1,320 mm |
| Model | Cummins QSL9.3 |
| Emissions | EPA Tier 3 / EU Stage III |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 8,849 mm |
| Width over tires | 2,980 mm |
| Cab height | 3,550 mm |
| Turning radius, outside of tire | 6,650 mm |
| Bucket capacity | 3.0-7.0 m |
| General purpose bucket | 4.5 m³ |
| Light material bucket | 5.8, 7.2, 9.0 m³ |
| Rock bucket | 3.3, 4.0 m³ |
| Download Brochure |
※For reference only.
