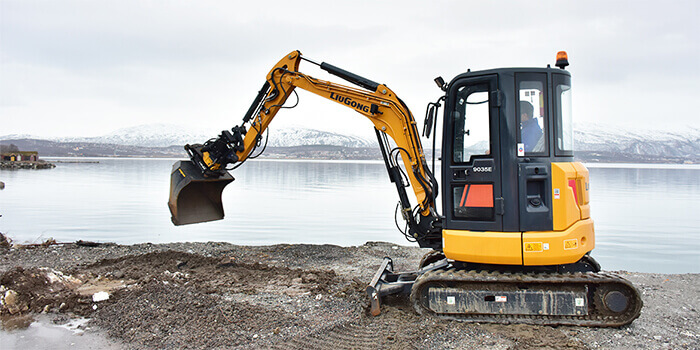

9035E－Stage IIIA

Operating weight with cab	3980 kg	8774 lb
Operating weight with canopy	3860 kg	8510 lb
Engine power	21.2 kW (28.4 hp) @ 2400 rpm	21.2 kW (28.4 hp) @ 2400 rpm
Std. Bucket capacity	0.11 m3	0.14 yd³
Travel speed(High)	4.2 km/h	2.61 mph
Travel speed(Low)	2.5 km/h	1.55 mph
Maximum swing speed	10 rpm	10 rpm
Arm breakout force	20 kN	4496 lbf
Bucket breakout force	30 kN	6774 lbf
Shipping length	4810 mm	15‘9‘’
Shipping width	1700 mm	5‘7‘’
Shipping height	2500/2581 mm (cab/canopy)	8‘2‘’/8‘47‘’ (cab/canopy)
Track shoe width (std)	300 mm	12‘’
Boom	2450 mm	8‘
Arm	1320 mm	4‘4‘’
Digging reach	5385 mm	17‘8‘’
Digging reach on ground	5270 mm	17‘3‘’
Digging depth	3085 mm	10‘1‘’
Vertical wall digging depth	2503 mm	10‘1‘’
Cutting height	4710 mm	8‘3‘’
Dumping height	3310 mm	10‘10‘’
Minimum front swing radius	2416 mm	7‘11‘’
Dozer-up	370 mm	1’3‘’
Dozer-down	390 mm	1’3‘’
Swing boom left rotation	70°	70°
Swing boom right rotation	50°	50°
Model	Yanmar 3TNV88-BPLY	Yanmar 3TNV88-BPLY
Emission	EU Stage IIIA	EU Stage IIIA
System maximum flow	92.4 L/min	24.41 gal/min
System pressure	24.5 MPa	3553 psi
Download Brochure

9035E－Tier 4F / Stage V

Operating weight with cab	3980 kg	8774 lb
Operating weight with canopy	3860 kg	8510 lb
Engine power	18.2 kW (24.4 hp) @ 2200 rpm	18.2 kW (24.4 hp) @ 2200 rpm
Std. Bucket capacity	0.11 m3	0.14 yd³
Travel speed(High)	4.2 km/h	2.61 mph
Travel speed(Low)	2.5 km/h	1.55 mph
Maximum swing speed	10 rpm	10 rpm
Arm breakout force	20 kN	4496/4002 lbf
Bucket breakout force	30 kN	6744 lbf
Shipping length	4810 mm	15‘9‘’
Shipping width	1700 mm	5‘7‘’
Shipping height	2500/2581 mm (cab/canopy)	8‘2‘’/8‘47‘’ (cab/canopy)
Track shoe width (std)	300 mm	12‘’
Boom	2450 mm	8‘
Arm	1320 mm	4‘4‘’
Digging reach	5385 mm	17‘8‘’
Digging reach on ground	5270 mm	17‘3‘’
Digging depth	3085 mm	10‘1‘’
Vertical wall digging depth	2503 mm	17‘3‘’
Cutting height	4710 mm	8‘3‘’
Dumping height	3310 mm	10‘10‘’
Minimum front swing radius	2416 mm	7‘11‘’
Dozer-up	370 mm	1’3‘’
Dozer-down	390 mm	1’3‘’
Swing boom left rotation	70°	70°
Swing boom right rotation	50°	50°
Model	Yanmar 3TNV88F-ESLY	Yanmar 3TNV88F-ESLY
Emission	Tier 4 F / Stage V	Tier 4 F / Stage V
System maximum flow	92.4 L/min ( 24 gal/min)	92.4 L/min ( 24 gal/min)
System pressure	24.5 MPa	24.5 MPa
